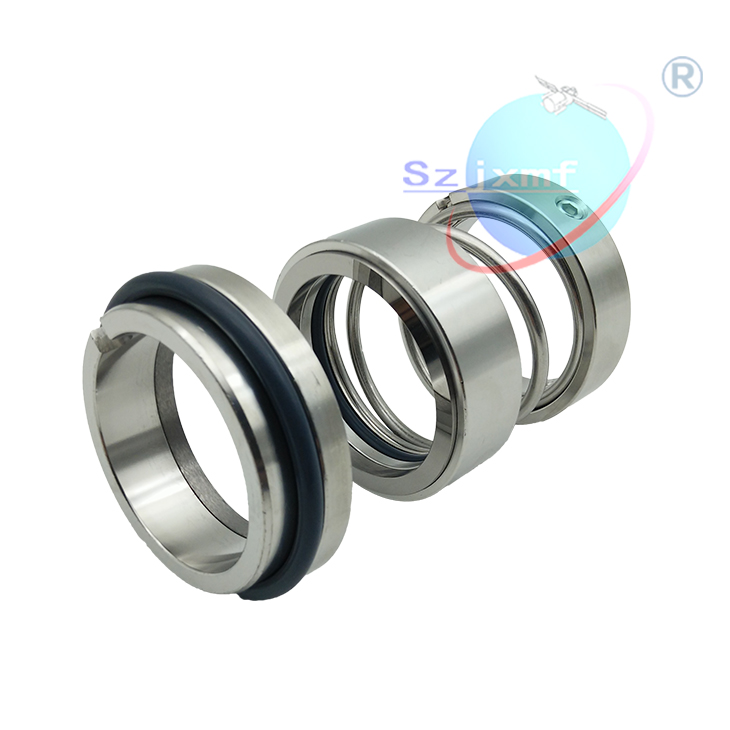

Model SZ108 mechanical seal

產(chǎn)品簡介：
Single end / balance / arbitrary rotation / rubber bellows

Operating parameters:
Pressure: 0 ~ 0.8Mpa, temperature: -20 to 150 DEG C, speed: less than 3000r/min, medium: water, sewage, oil and weak corrosive liquid, size: 10 ~ 55mm, pressure = 0.8Mpa, temperature: -20 to 120 DEG C, line speed: less than 10m/s, axial momentum: + 1.0mm

Material combination:
Sealing faces: graphite, silicon carbide, tungsten carbide
Auxiliary seals: Ding Jingjiao, fluorine rubber, ethylene propylene rubber, flexible graphite, PTFE
Metal component: stainless steel, alloy steel
